| PRODUCTS |
|
| Hydraulic power unit series |
|
|
|
|
|
Nominal pressure：20MPa 32MPa
Nominal displacement：3ml/r、5ml/r、6ml/r
DC voltage：12V 、 24V
Motor Power：2.2KW 、 2.5KW 、3KW、4KW
Load speed：2500rpm 、3500rpm
Working conditions：S1=10%
|
Nominal pressure：20MPa 、32MPa
Nominal displacement：1.6ml/r、2ml/r、3.3ml/r
DC voltage：12V 、24V
Motor Power：1.6KW、2.5KW
Load speed：2500rpm
Working conditions：S1=10%
Scope：0.5—1TForklifts, etc.，Holding pressure performance
|
Nominal pressure：20MPa
Nominal displacement：0.45ml/r、0.6ml/r
DC voltage：12V
Motor Power：0.7KW
Load speed：2500rpm
Scope：0.5—1TLifts, etc.，Holding pressure performance
|
|
|
|
Nominal pressure：20MPa
Nominal displacement：1.6ml/r、2ml/r、3.3ml/r
DC voltage：12V 、 24V
Motor Power：1.6KW 、 2.5KW
Load speed：2500rpm
Working conditions：S1=10%
Scope：0.5—1.5TForklifts, etc.，Holding pressure performance |
Standard hydraulic power unit
Developed to meet the needs of users 3YA/YQ/YL standard low noise hydraulic power unit (hydraulic station)
Features: A series of low noise and AR series piston pump, be considered in terms of fuel tank structure and piping is very attentive, in order to reduce the noise.
Energy saving, heat a small
Pressure compensated variable displacement piston pump with a high efficiency, power loss, so energy is small, concurrent heat.
Product Model
In order to allow you to choose the most suitable product, pump, tank volume and Motor Power combined into 29 different models.
|
| SD series hydraulic power unit |
|
|
This series is an integrated micro-hydraulic power unit. Primarily by an electric motor, hydraulic pump, threaded cartridge valve blocks superimposed valve, fuel tank and other components. Through the operation of manual or electric control valve, the output pressure oil. And in accordance with the needs of users to adjust the pressure or flow.
The product has the advantages of compact structure, small size, light weight, low cost, high efficiency, reliable performance, the use of a simple operation, easy maintenance. It can be widely used in metallurgy, automobile, agricultural machinery, construction machinery, hydraulic, machinery, lifting platform, automation equipment and other industries. |

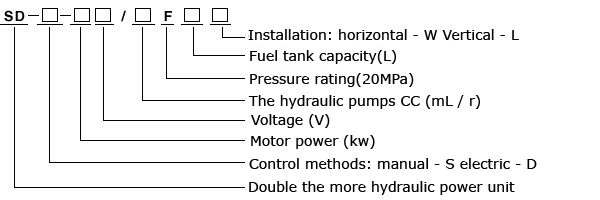

| Model ID: |
 |
| |
| Project |
Performance parameters |
| Electric motor |
Voltage（V） |
AC380、AC220、DC24 |
| Power（KW） |
0.55、0.75、1.1、1.5、2.2、3.0、4.0 |
| Speed（r.p.m） |
2500 |
| Oil pump |
Rated pressure（MPa ） |
20 |
| Displacement（mL/r） |
1.0、1.6、2.0、2.5、3.3、4.2 |
| Fuel tank capacity（L） |
4-15（With selected according to customer requirements） |
| The size of the oil outlet（mm） |
M 14× 1.5、G1/4、G3/8 |
|
|
